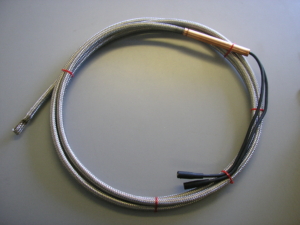

Switch Heater Single Ended Rail Elements

Thermal-Flex switch heater single ended rail elements provide maximum heat at the switch point.  The single ended design simplifies installation by bringing both lead wires out to a central point for termination.  This design further simplifies system wiring, especially when crib or ballast heating is used, by locating all component wiring at the switch point.  Spring steel track clips hold everything in place allowing for quicker installation and removal, and more importantly, eliminating the need for rail drilling.

When coupled with Thermal-Flex thermally insulated aluminum or stainless steel covers, the rail heaters are allowed to operate at optimum efficiency as heat is driven into the rail and not lost to the environment.

Features

    • 100 to 500 Watts per Foot
    • Voltage to 750 Volts
    • High Temperature Incoloy 800 or Stainless Steel Sheath
    • Tube Diamter 0.470″
    • Welded Epoxy Filled Connector, 0.750″ Diameter
    • 12′ Foot #10 AWG DLO Leadwire
    • Insulated Aluminum or Stainless Steel Covers Available
    • Can be Shipped in Coils from 40″ Diameter or Crated to Heater Length

High Wattage Switch Heating System – Single and Double Ended Rail Elements

Thermal-Flex single and double ended rail heating elements provide the flexiblity needed to complete difficult switch heater installations. Single ended rail elements permit the moveable rail in a moveable point frog to be heated while the stock rail is heated with high wattage double ended tubular rail elements. Both heating element styles utilize insulated covers and rail clips to maximize heat transfer and simplify installation.

High Wattage Switch Heater Rail Elements - Single and Double Ended Rail Elements
